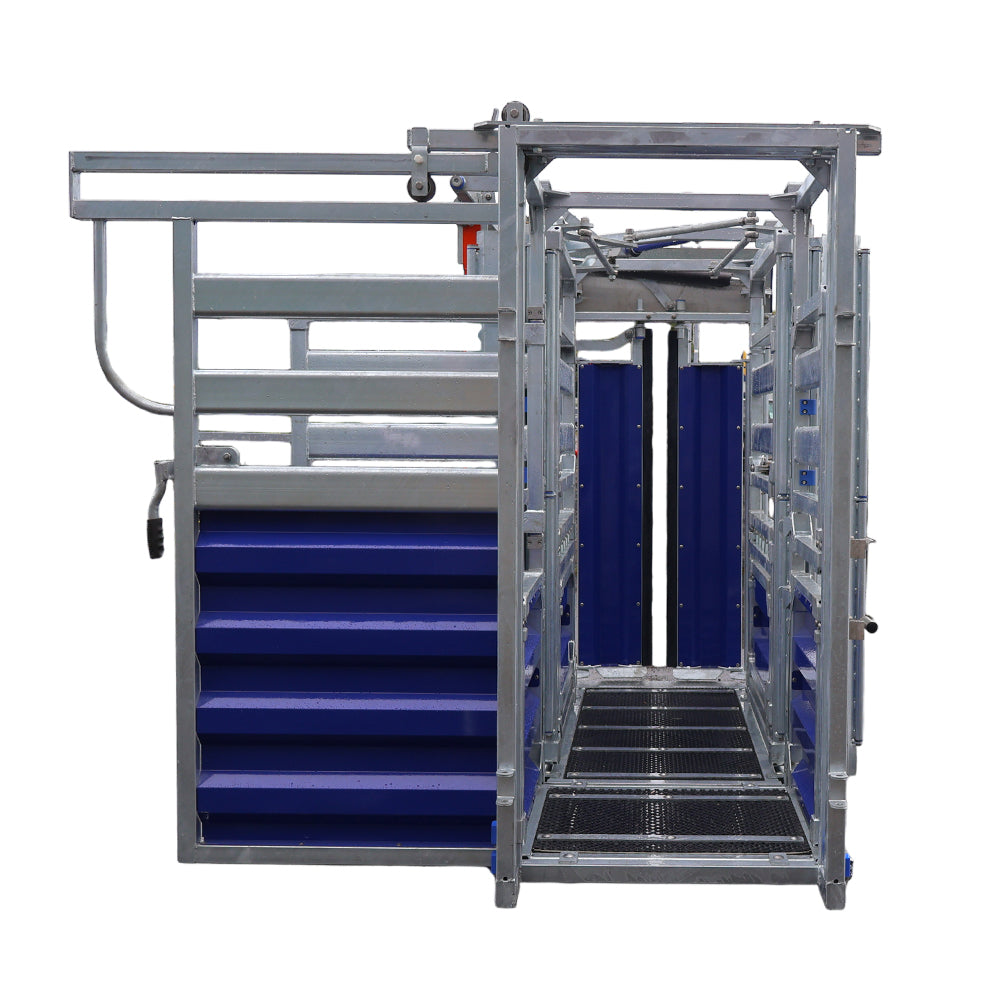

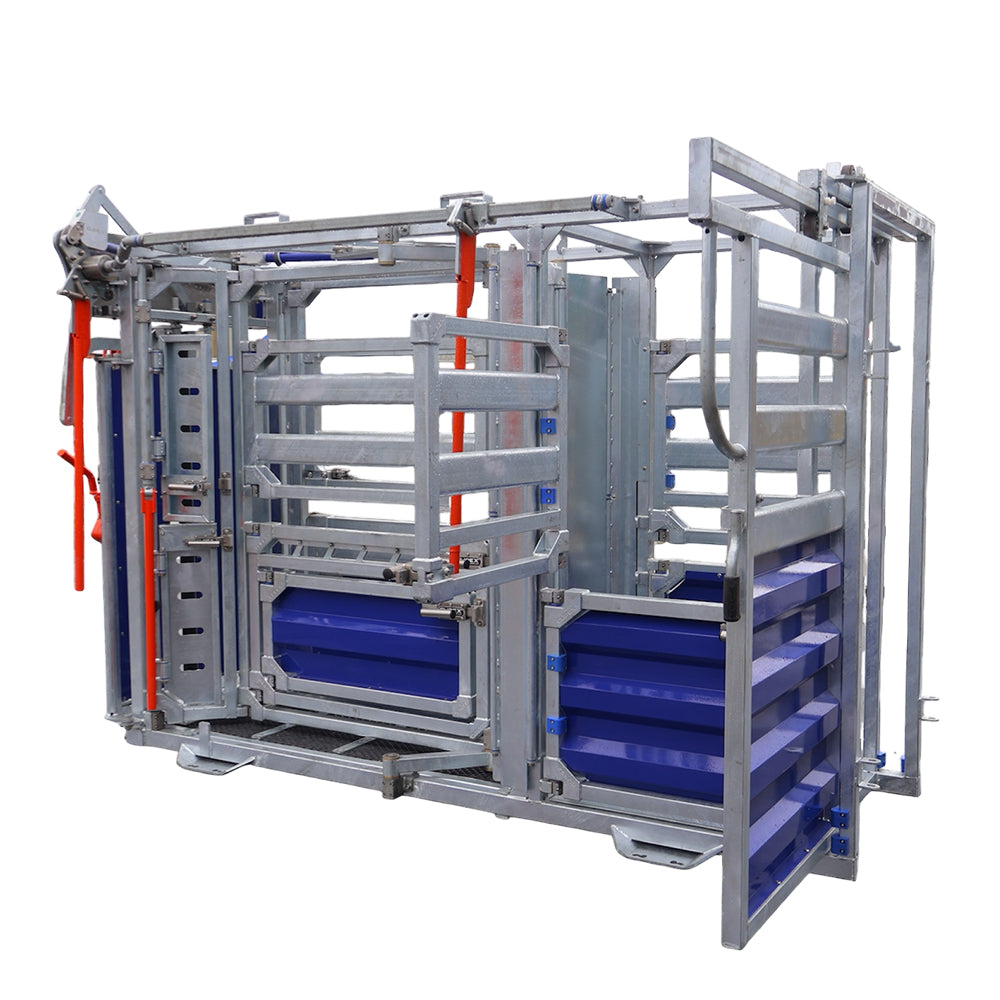

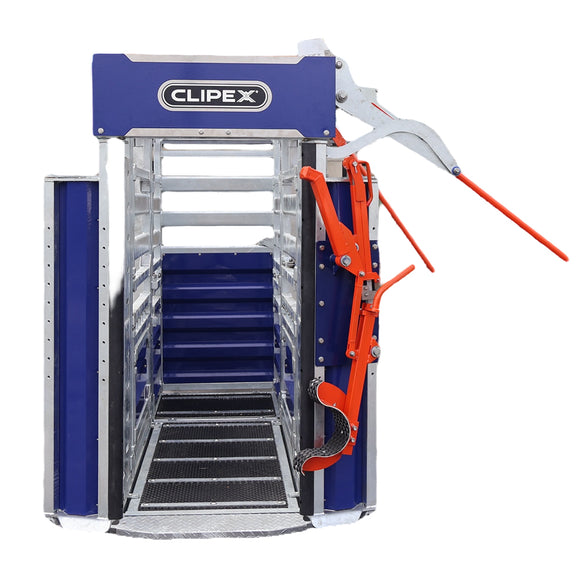

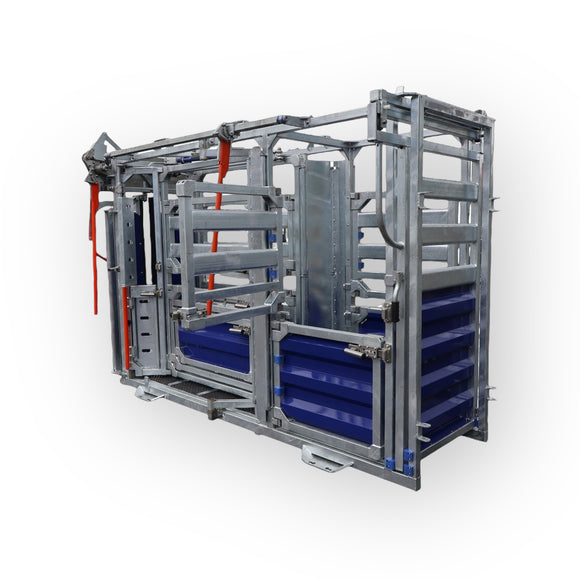

Clipex HD1300 Series Cattle Crush

£9,995.00

The HDX 1300 SERIES CATTLE CRUSH is designed for efficient livestock handling. Featuring a maximum width of 820mm, this crush allows for optimal control of the animal, ensuring the work is carried out safely. Including noise-dampening technology creating a calm environment for the cattle.



Benefits:

  • Extended width (820mm)
  • TB Testing Doors
  • Extra Neck Access
  • Head Scoop Included.
  • Double Parallel Squeeze.
  • Infinite, silent lock on head bail & squeeze.
  • Anti-rattle catches on all swinging doors.
  • Front & Rear head bail handle.
  • Hot dip galvanised.
  • Full Vet Section.
  • 120mm anti-bruise rail.
  • Split gates both sides.
  • Sheeted slide gate bottom doors.
  • Load bar mounts on feet.
  • In-built floor section.
  • Rubber flooring over sheet metal.
  • Lifting eyes on top of crush for easy transportation.
  • Weighing options.
  • Available in both left and right hand access



Specification:

 Product Code CH-HDX1300VC
VET Section Yes
Internal Length 2980mm
Internal Width 820mm
Minimum squeeze width 280mm
Manual operation Yes
Pneumatic operation No
Squeeze Double side parallel
Headbail lock Ultra lock hydraulic cell
Headbail Manual
Total height 2250mm
Weight 1300kg
Corrosion protection Hot dipped
Steel corner castings No
Entry gate Manual single side
Slam catches Yes
Rump bar Yes
Side access doors 7
Head holder Included
Floor Welded floor included
Access door options No
Offside options Yes
Automation options N/A
Front adaptor posts Optional
Warranty 12 months
